Retrieve Successful User Logins Using Graph PowerShell

Tracking successful user sign-ins is vital for monitoring user activity, auditing sign-in patterns, and ensuring secure access to Microsoft 365 services. This article walks you through a basic Graph PowerShell script to extract successful user login data using the Microsoft Graph PowerShell SDK (v1.0), with enhancements and troubleshooting guidance.

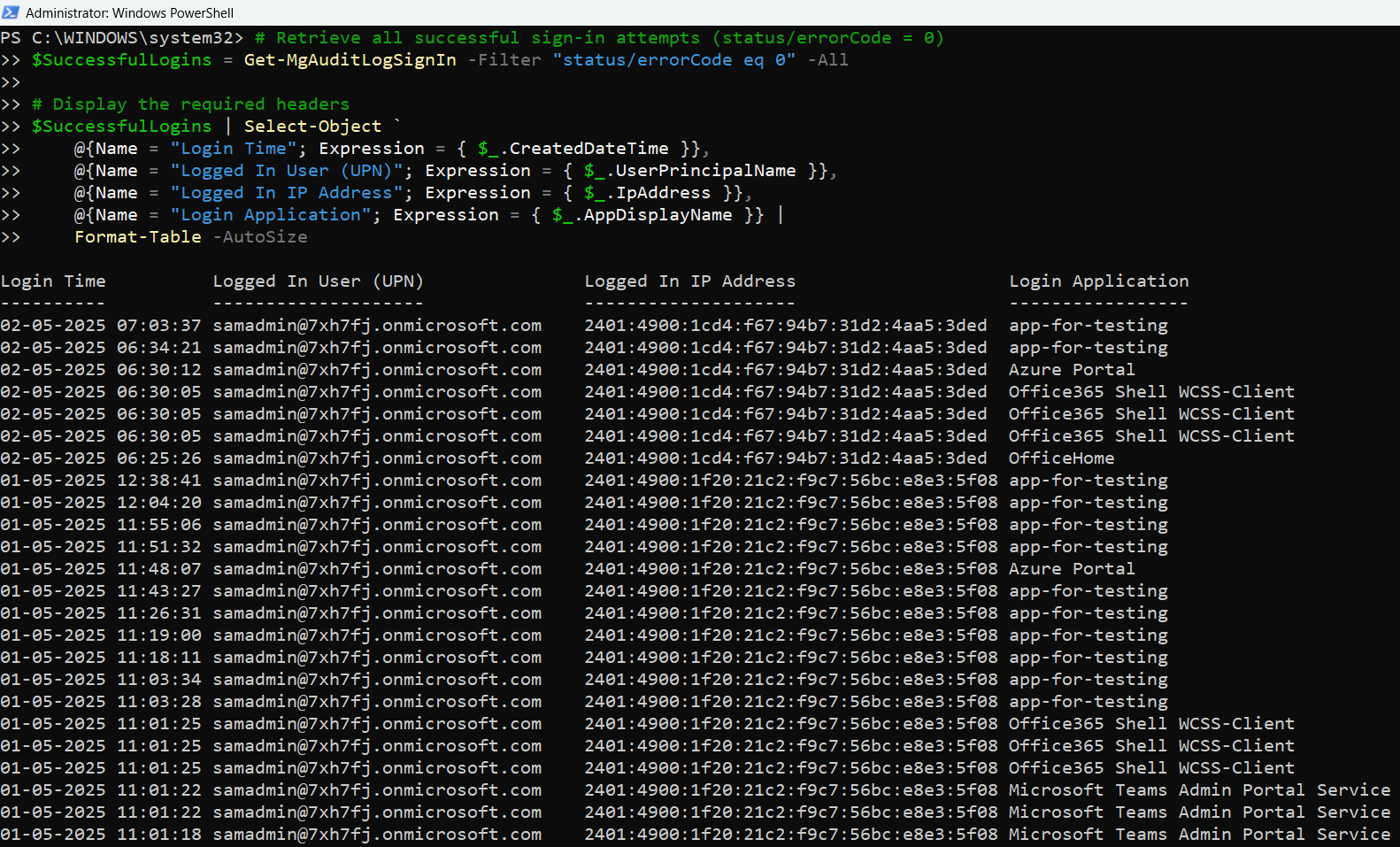

Script – Fetch Successful User Logins

# Connect to Microsoft Graph with necessary permissions
Connect-MgGraph -Scopes "AuditLog.Read.All"

# Retrieve all successful sign-in attempts (status/errorCode = 0)
$SuccessfulLogins = Get-MgAuditLogSignIn -Filter "status/errorCode eq 0" -All

# Display the required headers in the PowerShell console
$SuccessfulLogins | Select-Object `
@{Name = "Login Time"; Expression = { $_.CreatedDateTime }},
@{Name = "Logged In User (UPN)"; Expression = { $_.UserPrincipalName }},
@{Name = "Logged In IP Address"; Expression = { $_.IpAddress }},
@{Name = "Login Application"; Expression = { $_.AppDisplayName }} |
Format-Table -AutoSize


How the Script Works

• Authentication: The script initiates a connection to Microsoft Graph using Connect-MgGraph and requests the AuditLog.Read.All permission scope.
• Data Retrieval: It uses the Get-MgAuditLogSignIn cmdlet to fetch sign-in logs. The filter status/errorCode eq 0 ensures that only successful logins are retrieved.
• Output Formatting: Using Select-Object, the script picks the following fields:
• Login Time: Timestamp of the successful sign-in
• UserPrincipalName: The UPN (email) of the signed-in user
• IP Address: Source IP from which the user signed in
• Application: The app or service used during the sign-in attempt
• Result Presentation: The data is neatly rendered in a formatted table using Format-Table.

Further Enhancements

Here are some enhancements you can apply to tailor the script to your needs:

Filter by Date Range

To focus on recent activity, you can filter results to include only those in the last 7 days:

$Since = (Get-Date).AddDays(-7)
$RecentSuccessLogins = $SuccessfulLogins | Where-Object { $_.CreatedDateTime -ge $Since }


Export to CSV

Exporting to a .csv file is helpful for audits and sharing reports:

$SuccessfulLogins | Select-Object ... | Export-Csv -Path ".\SuccessfulLogins.csv" -NoTypeInformation

Filter by User or Application

You can further narrow results by specific user or application:

$SuccessfulLogins | Where-Object { $_.UserPrincipalName -eq "jane.doe@domain.com" }

Possible Errors & Solutions

Error	Cause	Solution
Connect-MgGraph is not recognized	Microsoft Graph SDK is not installed	Run Install-Module Microsoft.Graph -Scope CurrentUser
Access Denied or Insufficient privileges	Missing admin consent or permission	Ensure AuditLog.Read.All is granted and consented by an admin
status/errorCode is not valid	Incorrect OData filter syntax	Use status/errorCode eq 0 (note case-sensitivity and exact path)

Use Cases

• User Activity Audits: Track when users successfully log into the tenant.
• Application Usage Insights: See which applications users are accessing.
• IP Address Auditing: Identify the geographical source of sign-ins.
• Compliance Reporting: Export successful login history for internal or external compliance.

Conclusion

With just a few lines of PowerShell, you can retrieve valuable insight into successful user sign-ins across your Microsoft 365 environment. This script is an excellent starting point for building robust sign-in activity reports that enhance your auditing, security monitoring, and compliance workflows.
