Fetch Security Group Members Using Microsoft Graph PowerShell

Security groups in Microsoft 365 are essential for managing user permissions, access control, and security policies. As an administrator, you may need to retrieve a list of users within a security group along with their details for auditing or reporting purposes. In this article, we explore a Graph PowerShell script that fetches security group members and displays their Group Name, Member Name, Department, and Job Title on the console.

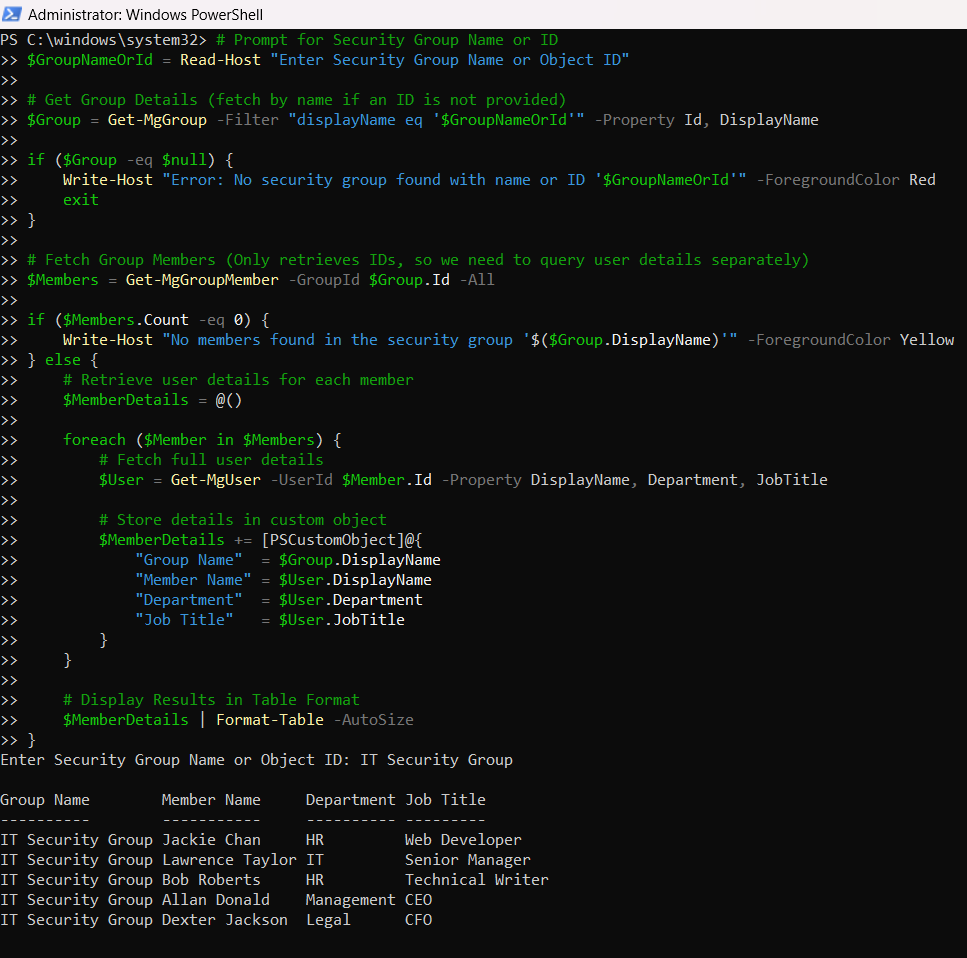

Script to Fetch Security Group Members

Below is the PowerShell script that retrieves and displays the Group Name, Member Name, Department, and Job Title of each member in a security group.

# Install & Import Graph Module (if not already installed)
# Install-Module Microsoft.Graph -Scope CurrentUser
Import-Module Microsoft.Graph

# Connect to Microsoft Graph
Connect-MgGraph -Scopes "Group.Read.All", "User.Read.All"

# Prompt for Security Group Name or ID
$GroupNameOrId = Read-Host "Enter Security Group Name or Object ID"

# Get Group Details (fetch by name if an ID is not provided)
$Group = Get-MgGroup -Filter "displayName eq '$GroupNameOrId'" -Property Id, DisplayName

if ($Group -eq $null) {
    Write-Host "Error: No security group found with name or ID '$GroupNameOrId'" -ForegroundColor Red
    exit
}

# Fetch Group Members (Only retrieves IDs, so we need to query user details separately)
$Members = Get-MgGroupMember -GroupId $Group.Id -All

if ($Members.Count -eq 0) {
    Write-Host "No members found in the security group '$($Group.DisplayName)'" -ForegroundColor Yellow
} else {
    # Retrieve user details for each member
    $MemberDetails = @()

    foreach ($Member in $Members) {
    # Fetch full user details
    $User = Get-MgUser -UserId $Member.Id -Property DisplayName, Department, JobTitle

    # Store details in custom object
    $MemberDetails += [PSCustomObject]@{
    "Group Name"  = $Group.DisplayName
    "Member Name" = $User.DisplayName
    "Department"  = $User.Department
    "Job Title"   = $User.JobTitle
}
}

# Display Results in Table Format
$MemberDetails | Format-Table -AutoSize
}

# Disconnect from Graph
Disconnect-MgGraph


How the Script Works

1. Connects to Microsoft Graph
• The script starts by connecting to Microsoft Graph using Group.Read.All and User.Read.All permissions.
2. Prompts for Security Group Name or Object ID
• The user enters the display name or object ID of the security group they want to query.
3. Fetches Group Details
• The script calls Get-MgGroup to retrieve the group’s ID and display name.
4. Retrieves Group Members
• The script runs Get-MgGroupMember to fetch members but only receives their ID.
5. Fetches Member Details
• It iterates through each member ID and queries Get-MgUser to retrieve the DisplayName, Department, and JobTitle.
6. Displays the Output in a Table Format
• The results are formatted in a structured table for easy readability.
7. Disconnects from Microsoft Graph
• The script ends by disconnecting from Microsoft Graph to release the session.

Further Enhancements

Here are some potential improvements to the script:

• Export Data to CSV: Modify the script to export results using:

$MemberDetails | Export-Csv -Path "SecurityGroupMembers.csv" -NoTypeInformation

• Filter Only User Objects: Some security groups contain devices or service principals. You can modify the script to filter out only users:

$UsersOnly = $Members | Where-Object { $_.'@odata.type' -eq '#microsoft.graph.user' }

• Batch Process Multiple Security Groups: Allow input from a CSV file to retrieve multiple groups at once.
• Enhance Error Handling: Implement better error handling for cases where API calls fail due to network or permission issues.

Use Cases

• Security Group Audits: IT admins can verify who has access to specific security groups.
• User Access Reports: Generate reports on which users belong to which security groups.
• Compliance & Security Reviews: Ensure that only authorized users are in sensitive security groups.
• Automated User Management: Integrate with scripts to remove inactive users from security groups.

Frequently Asked Questions

• Can I retrieve only user objects from a security group?

Yes. The Get-MgGroupMember cmdlet can return different object types (users, guests, devices, service principals). To target only user objects, filter results based on @odata.type -eq '#microsoft.graph.user'.

• How can I export security group members for reporting?

You can pipe the output of Get-MgGroupMember into Export-Csv to generate structured reports. For example:

Get-MgGroupMember -GroupId -All | Export-Csv -Path "C:\GroupMembers.csv" -NoTypeInformation
• Why do I sometimes see fewer members than expected?

By default, the cmdlet may return a limited set of members. Use the -All parameter to fetch the complete membership list, or handle pagination with $skiptoken.

• Can I check if group members are guest accounts?

Yes. After retrieving member IDs, pass them to Get-MgUser and filter by the UserType property to separate guest accounts from members.

Possible Errors & Solutions

$MemberDetails | Export-Csv -Path "SecurityGroupMembers.csv" -NoTypeInformation

Conclusion

This PowerShell script provides an efficient way to fetch and display members of a Microsoft 365 security group, including Member Name, Department, and Job Title. By leveraging Microsoft Graph API, administrators can automate security audits, improve user management, and ensure compliance. The script can be further enhanced with CSV exports, error handling, and bulk processing capabilities.
